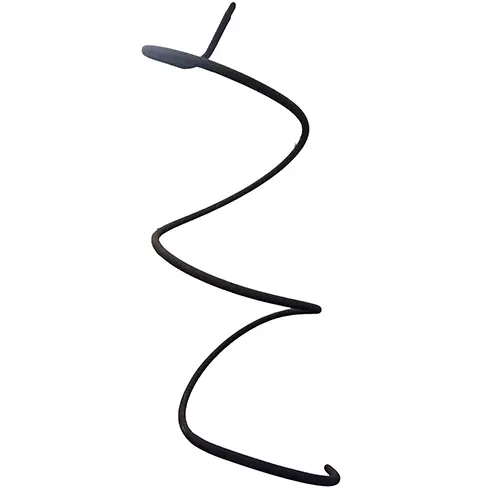

Custom Spiral Pole

For performers, studios, and productions that need something beyond our standard lineup, we offer fully customizable Spiral Poles built to your specifications. Whether you’re looking for a dramatic stage centerpiece or a spiral tailored to your body and space, our custom builds allow you to create a truly one-of-a-kind apparatus.

Every custom spiral is engineered with the same attention to detail and professional standards as our standard line — but tailored to your vision. From grip size to taper design, your spiral becomes a reflection of your performance style.

Custom Sizing: Built to your requested diameter and proportions
Pipe Options: Available in 2 inch or 1.5 inch pipe for your preferred grip and aesthetic
Optional Design Features: Tapered top and bottom to create a sleek, double-obelisk silhouette for striking stage presence
Material: Durable mild steel, professionally welded & load-tested
Weight Load Capacity: Up to 250 lbs dynamic movement (to maintain structural integrity)
Weld Strength: Rated to a maximum of 5,000 lbs
Life Span: Approximately 8 years or 10,000 working hours with proper care and maintenance
Coil Direction: Standard clockwise or counter-clockwise at your request
Best for: Custom performers, studios with unique space needs, theatrical productions, and anyone who wants a spiral that’s truly their own

Optional Upgrades
(additional cost)

Powder Coating: Add custom powder coating for color, protection, and grip preference.
Tapped for Mounting: Have the spiral pre-tapped before shipping for easier rigging and installation.

Care & Safety Notes

For best use and longevity, keep your spiral indoors and out of direct weather exposure. This apparatus is designed for single-user performance only — we do not recommend doubles unless specifically engineered for them.

Spiral Apparatus Purchase Terms & Limited Warranty Agreement

AERIAL ILLUSIONS COMPANY LLC
SPIRAL APPARATUS PURCHASE TERMS & LIMITED WARRANTY AGREEMENT

Effective Date: November 19, 2025

By completing your purchase, checking the acknowledgment box, and submitting payment, you (“Buyer”) agree to the following legally binding terms and conditions with THE AERIAL ILLUSIONS COMPANY LLC (“Seller”).

------------------------------------------------------------

1. PRODUCT DESCRIPTION

Each Spiral Apparatus (“Product”) is a patented, all-one-piece welded steel aerial apparatus designed and manufactured by THE AERIAL ILLUSIONS COMPANY LLC.

- Base Finish: Steel (optional pre-taping in Buyer’s color choice included)
- Design: Continuous steel spiral structure with full-penetration welds engineered for aerial performance
- Intended Use: Professional pole and aerial training and performance applications
- Load Capacity: Welds are rated to hold up to 5,000 lbs of static load
- Maximum Active User Weight: 250 lbs (113 kg) to prevent distortion or permanent bending
- Expected Lifespan: 5 years or 10,000 working hours, whichever comes first, under normal professional use and maintenance

------------------------------------------------------------

2. ACCEPTANCE OF RISK

By purchasing this Product, Buyer acknowledges that pole and aerial arts are inherently physical and carry risk of injury or death. Buyer voluntarily assumes all risks associated with installation, use, and instruction involving the Product.

Buyer certifies that they (and any students or performers using the Product) will have appropriate training, supervision, and installation standards in place.

------------------------------------------------------------

3. INSTALLATION & MAINTENANCE REQUIREMENTS

- Product must be installed and load-tested by a qualified professional rigger or installer.
- Seller provides written Installation & Maintenance Instructions, which Buyer agrees to follow in full.
- Failure to adhere to these guidelines voids all warranties.
- Buyer agrees to routinely inspect for wear, corrosion, tape damage, or structural stress before each use.

------------------------------------------------------------

4. LIMITED WARRANTY

Seller warrants that each Product will be free from defects in materials and workmanship for five (5) years or 10,000 working hours, whichever occurs first.

WARRANTY COVERAGE:
- Structural integrity of steel and welds under normal use

WARRANTY EXCLUSIONS:
- Misuse, over-loading, or user weight exceeding 250 lbs
- Improper installation, modification, or unauthorized repair
- Rust, corrosion, or surface wear from environmental exposure
- Cosmetic damage, taping, or adhesive wear
- Use for unapproved rigging, outdoor installations, or uninspected ceiling mounts

REMEDY:
If a valid claim is made, Seller may, at its discretion, repair, replace, or credit the defective Product.
Buyer is responsible for all shipping and handling charges related to warranty claims.

------------------------------------------------------------

5. LIABILITY LIMITATION

- Buyer releases, indemnifies, and holds harmless Seller, its officers, employees, and affiliates from all claims, injuries, losses, or damages arising out of use, installation, or operation of the Product.
- Seller shall not be liable for any incidental, consequential, or indirect damages, including but not limited to personal injury, lost profits, or property damage.
- Seller’s total liability shall not exceed the purchase price of the Product.

------------------------------------------------------------

6. NO MODIFICATION OR REVERSE ENGINEERING

The Product’s design, construction, and instructional materials are protected by patent and trade secret laws. Buyer shall not reproduce, reverse engineer, modify, or create derivative works based on the Product without prior written consent from THE AERIAL ILLUSIONS COMPANY LLC.

------------------------------------------------------------

7. RETURN & CANCELLATION POLICY

- All Spiral sales are final.
- Orders canceled prior to shipment are subject to a 20% restocking and administrative fee.
- Pre-sale deposits are non-refundable but may be transferred to another Buyer with Seller’s approval.

------------------------------------------------------------

8. GOVERNING LAW

This Agreement shall be governed by and interpreted under the laws of the State of Florida, with exclusive jurisdiction and venue in Lee County, Florida.

------------------------------------------------------------

9. ENTIRE AGREEMENT

This document constitutes the entire agreement between the parties. By completing the purchase, Buyer acknowledges that they have read, understood, and agreed to all terms herein.

Spiral Apparatus Installation & Maintenance Manual

AERIAL SPIRAL POLE
SPIRAL APPARATUS INSTALLATION & MAINTENANCE MANUAL

Effective Date: November 19, 2025

------------------------------------------------------------

Version: 1.0

Manufacturer: The Aerial Illusions Company LLC
Brand: Aerial Spiral Pole
Website: aerialspiralpole.com
Email: aerialspiralpole@gmail.com

1) Product Overview
The Spiral Apparatus is a patented, all-one-piece welded steel aerial apparatus designed and
manufactured by The Aerial Illusions Company LLC for professional instruction and performance.
Material: Welded steel Base Finish: Steel (optional pre-taping in purchaser’s color included) Weld
Strength (static): up to 5,000 lbs Maximum Active User Weight: 250 lbs (113 kg) Expected Lifespan: 5
years or 10,000 working hours (whichever occurs first) under normal use and maintenance Intended
Use: Professional aerial/pole training and performance in supervised environments Note: Gradual
distortion over time is normal for all single-piece steel designs.

------------------------------------------------------------

2) Safety Disclaimer
Aerial arts involve inherent risk of injury or death. Installation, inspection, and supervision must be
performed by qualified professionals. Failure to follow this manual voids warranty and may result in
serious injury. Comply with local building codes and facility safety policies. Always use rated
commercial aerial hardware. Use appropriate crash mats during training or rehearsal.

------------------------------------------------------------

3) Pre-Installation Checklist
Confirm all items before installation: • Structure Capacity: Overhead support rated to ≥ 5× combined
apparatus + user load (minimum 1,250 lbs). • Ceiling Height: Recommended 10–14 ft; minimum 8 ft
from floor to top mount. • Hardware Ratings: Swivels, carabiners, quick links, and shackles ≥ 5,000
lbs static rating; forged steel, locking gates. • Clearances: ≥ 5 ft radius free of walls, mirrors,
sprinklers, and lighting. • Mats: ≥ 2 in. thick landing pad under apparatus during training.

------------------------------------------------------------

4) Installation Instructions
Step 1 — Unpack & Inspect • Remove packaging; verify serial number and inspection tag. • Check for
shipping damage, cracks, bends, or weld defects. • Do not install if any issues are present; contact
support. Step 2 — Select Mounting Point • Use only structural beams/truss or engineered aerial
mounts. • Do not mount to drywall, suspended ceilings, or non-load-bearing elements. Step 3 —
Attach Hardware • Connect the Spiral’s top attachment point to the anchor with rated hardware. •
Install a high-load swivel if rotational use is desired. • Ensure gate closures are locked; verify free,
vertical hang. Step 4 — Static Load Test • Hang 2–3× expected user body weight for 60 seconds. •
Observe for movement, creaks, or deformation. • Record date/results in the Maintenance Log
(Section 9). Step 5 — Final Safety Check • Confirm clearances, mats, lighting, and floor conditions. •
Brief users on rules, weight limit, and spotter protocols.

------------------------------------------------------------

5) Operating Guidance
• Enforce 250 lb (113 kg) user limit. • Prohibit dynamic stunts beyond user and coach competency. •
Keep hands and tape surfaces clean and dry. • Remove jewelry and abrasive items before use. •
Supervise all youth/minors at all times.

------------------------------------------------------------

6) Maintenance & Inspection
Before Each Use: • Check weld seams, attachment eyelet, hardware, tape integrity, bends, or warps.
• If anything appears abnormal, ground the apparatus and inspect further. Monthly: • Remove tape;
inspect bare steel for cracks, rust, pitting, or deformation. • Lightly oil to prevent oxidation. • Retape
only after confirming integrity. Annual: • Qualified rigger/engineer to complete full structural
inspection. • Replace all hardware annually. • Record all inspections. Immediately remove from
service if any weld cracking, bending, corrosion, or hardware failure occurs.

------------------------------------------------------------

7) Cleaning & Storage
Clean with mild soap and water only; avoid solvents or corrosives. Dry thoroughly; store in dry,
climate-controlled conditions. Remove tape and apply rust-preventive coating or wrap in VCI barrier
for long-term storage. Avoid salt-air exposure; inspect more frequently in coastal areas.

------------------------------------------------------------

8) Warranty & Service
Warranty: 5 years or 10,000 working hours (whichever occurs first) covering defects in materials and
weld workmanship under normal professional use. Exclusions: misuse, overloading, improper
installation, corrosion, modifications, or cosmetic wear. To file a claim: • Provide serial number,
purchase date, photos/video, and Maintenance Log excerpt. Contact: aerialspiralpole@gmail.com
Manufacturer Address: The Aerial Illusions Company LLC, 28360 Old 41 Rd #9, Bonita Springs, FL
34135, USA

------------------------------------------------------------

9) Maintenance Log
| Date | Inspection Type | Findings | Inspector Initials | |------|-----------------|-----------|--------------------| | | |
| | | | | | |

------------------------------------------------------------

10) Legal Notice
Failure to comply with this manual voids warranty and releases the manufacturer from liability. All
designs, manuals, and patents are property of The Aerial Illusions Company LLC (Aerial Spiral Pole
brand). © 2025 Aerial Spiral Pole / The Aerial Illusions Company LLC. All rights reserved.
